Customer :- SKF India LTD.

Year of Manufacturing :- 2019.

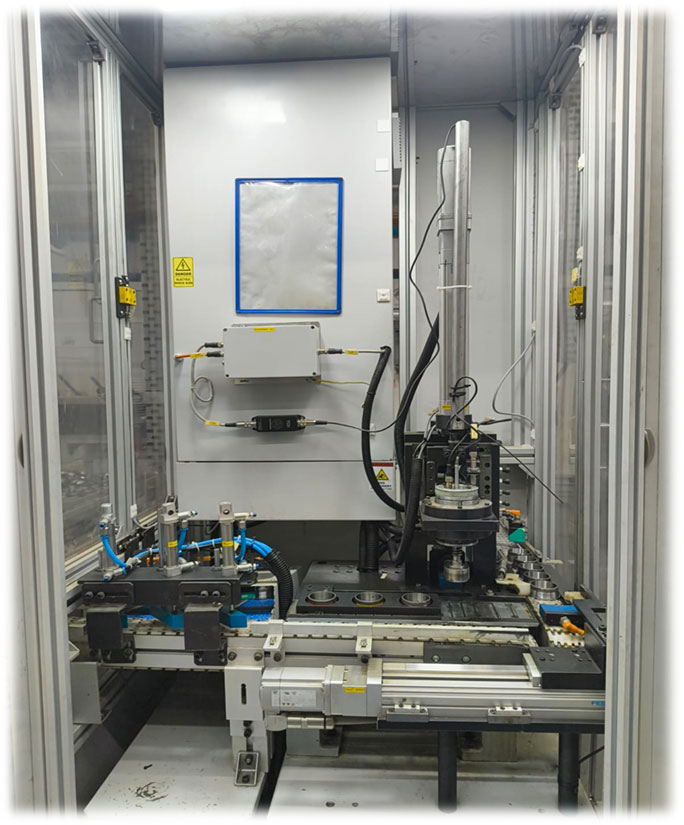

The ABG (Auto Bore Gauging) machine is a high-precision automated system used for accurate measurement of the inner diameter (bore) of bearing rings. It operates on a two-point measuring principle, ensuring stable and repeatable readings even in high-speed production environments. The machine is integrated with advanced gauging technology from **Marposs (Italy)**, known globally for precision measurement solutions, which enhances reliability and measurement accuracy.

The system is designed to provide consistent dimensional control by automatically measuring each component and minimizing human intervention. This helps in maintaining tight tolerances and improving overall product quality. Due to its automated operation, it is highly suitable for batch as well as mass production, where continuous monitoring of bore dimensions is critical for ensuring proper fit and performance of the final bearing assembly.

Capability

Size	Diameter	R & R
Small Ring	Dia 24	0.5 Micron
Big Ring	Dia 300	2 Micron

In terms of capability, the ABG machine can handle a wide range of ring sizes, from small rings with a bore diameter of around 24 mm to large rings up to 300 mm diameter. It delivers high repeatability, with an R&R of approximately 0.5 micron for small rings and around 2 microns for larger rings. This level of precision makes it ideal for applications requiring strict dimensional accuracy and consistent quality control.
